Harvesting & Fodder Equipment

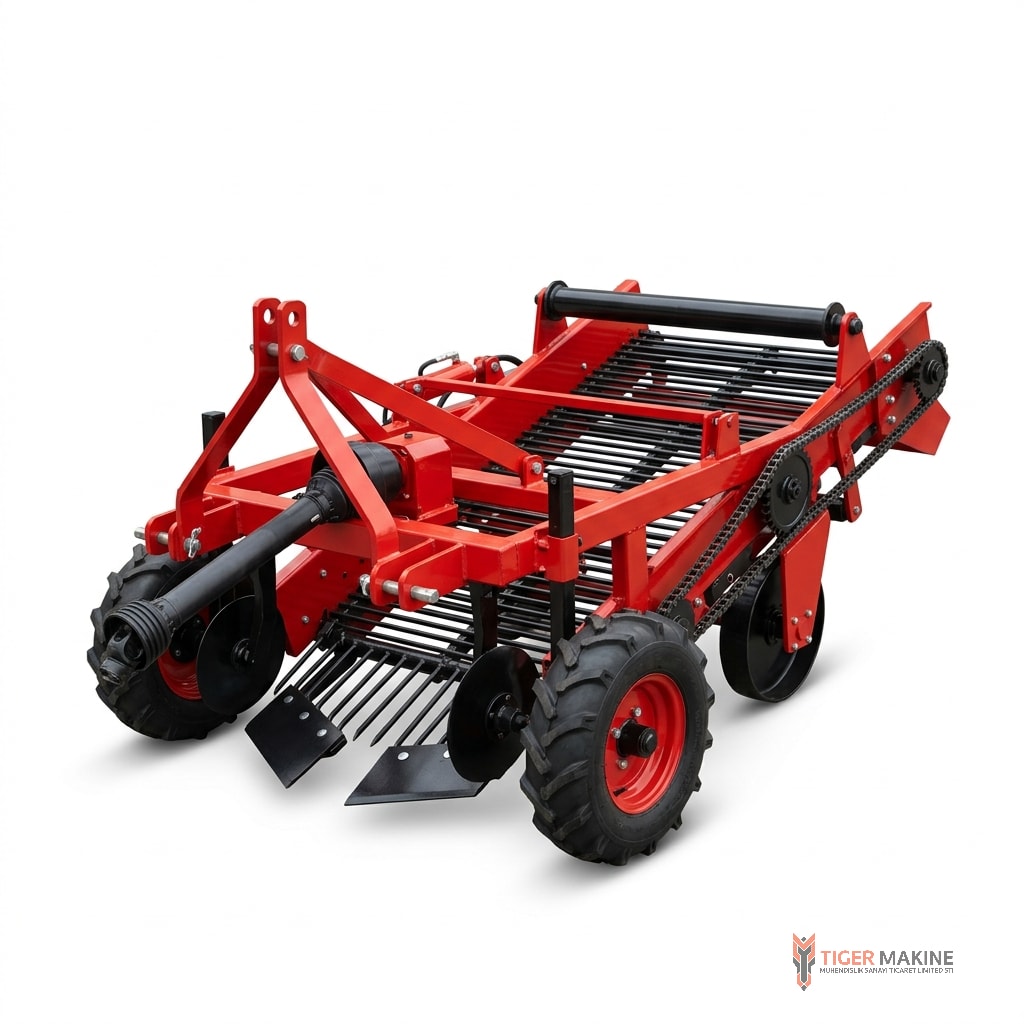

Groundnut Digger
A PTO-driven digger with a shaker conveyor that shakes off excess soil.
- Low pod loss
- Shaker rod conveyor
- Depth control wheels
About this product
How the Groundnut Digger works
The groundnut digger loosens the soil under the crop rows and lifts the plants gently upward. A soil separation mechanism shakes off the excess soil and leaves clean plants lying on the surface, so the crop is easy to collect and dry.
This controlled action limits damage to pods and roots, which helps preserve both yield and quality. The blade-type digger with a shaker-rod conveyor is PTO-driven, has depth-control wheels and a heavy-duty mild-steel frame, and works at 3–5 km/h behind a tractor of at least 50 HP. It is best in dry to medium-moist soil.
For the cleanest lift, dig when the soil is dry to medium-moist; very wet soil sticks to the plants and very hard soil breaks pods. Set the depth wheels so the blade runs just under the pods, and work at 3–5 km/h with a tractor of at least 50 HP.
Before you buy the Groundnut Digger
Lifting groundnuts is a race against the weather, so a digger that works fast and shakes the soil off is valuable. Set the working width to match your rows, and plan to dig when the soil is dry enough to fall away from the pods. Check the PTO and tractor power before ordering.
Specifications
Specifications
Groundnut Digger: the specifications
| Implement Type | Tractor Operated Groundnut Digger |
|---|---|
| Operation | Harvesting / Digging Groundnut Crop |
| Drive Type | PTO Driven |
| Working Width | Adjustable (as per row spacing) |
| Digging System | Blade Type with Shaker Rod Conveyor |
| Soil Separation | Rod / Shaker Mechanism |
| Depth Control | Gauge / Depth Control Wheels |
| Frame Material | Heavy-Duty Mild Steel |
| Required Tractor Power | Minimum 50 HP |
| Working Speed | 3 – 5 km/h |
| Suitable Crop | Groundnut (Peanut) |
| Field Condition | Dry to Medium Moist Soil |
Sizes available
Need another size of the Groundnut Digger?
Ask about sizesKey features
Key features of the Groundnut Digger
Low pod loss
Gentle lifting protects yield.
Shaker rod conveyor
Shakes off soil and leaves plants clean.
Depth control wheels
Keep the blade at a steady working depth.
Questions
Questions about the Groundnut Digger
It lifts the plants out of the soil and shakes off most of the earth as they travel across, so the crop dries cleaner and is easier to pick up.
