Bench Drilling Machine
A fixed drill that holds the bit square to the work, so holes are straight, repeatable and accurate.
- Rigid cast iron column
- Feed handle and depth stop
- T-slot work table
- Belt-driven speeds
About this product
How the Bench Drilling Machine works
Drilling with a hand drill depends on a steady hand. A drilling machine takes the human error out: the bit moves straight down a column, the work is clamped to the table, and the depth is set by a stop, so the tenth hole is exactly like the first.

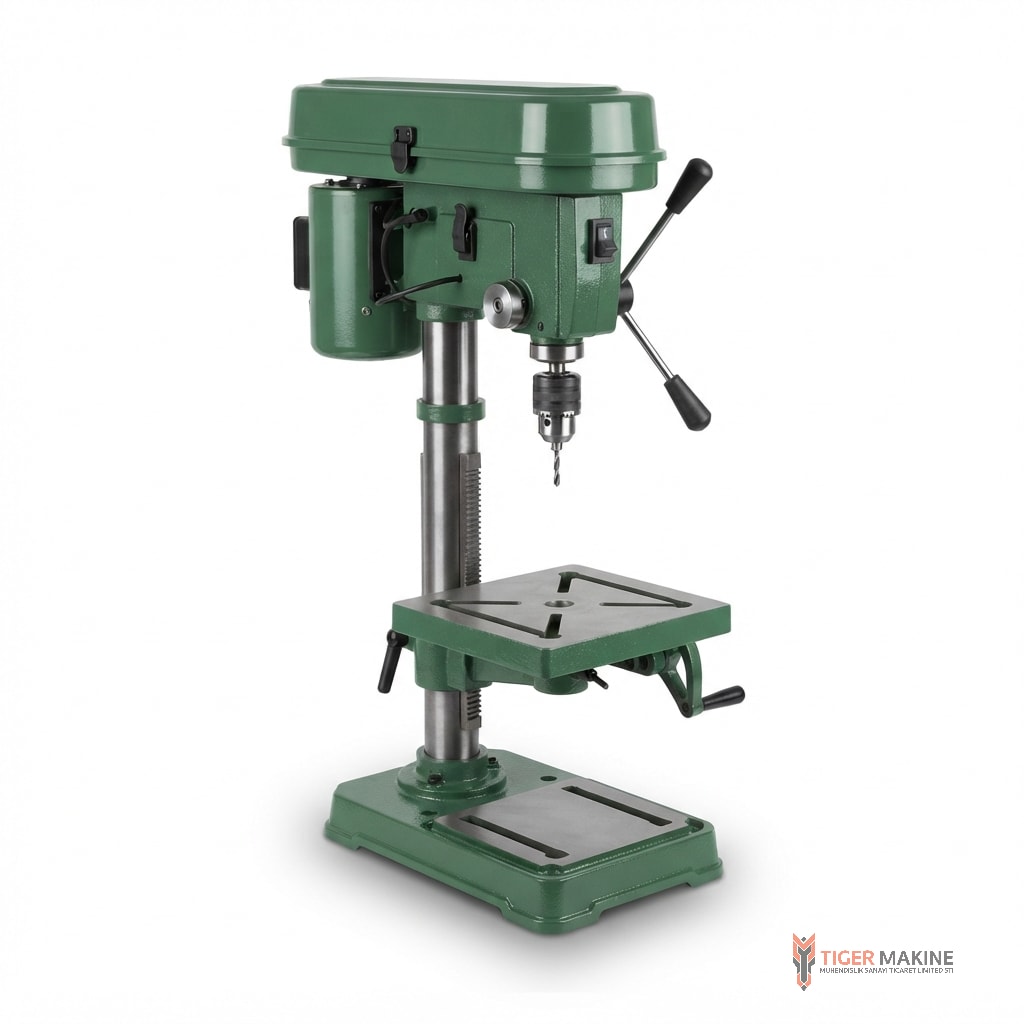

The machine has a heavy cast iron base and column in green, with a motor at the top connected through a belt drive to the spindle and chuck. A feed handle at the side lowers the spindle, and a flat table with T-slots holds the vice or workpiece and can be raised, lowered and swung to suit the job.
Bench drills are the heart of any metal or wood workshop: garages, fabricators, agricultural repair shops, schools and training centres. Select the speed by moving the belt on the pulleys, clamp the work, and always wear eye protection. We confirm the drilling capacity, power and voltage before shipping.
Before you buy the Bench Drilling Machine
A drill press holds the bit square to the work, which gives straight, repeatable holes that a hand drill cannot match. It is a core tool for any workshop. Choose one with a sturdy cast iron frame and clamp your work before drilling.
Specifications
Specifications
Bench Drilling Machine: the specifications
| Product type | Bench drilling machine |
|---|---|
| Frame | Cast iron, green |
| Table | Flat with T-slots, adjustable |
| Drive | Motor with belt and pulleys |
| Supplied as | Single units, crated |
| Drilling capacity, motor power, speeds and voltage | On request |
Sizes available
Need another size of the Bench Drilling Machine?
Ask about sizesKey features
Key features of the Bench Drilling Machine
Rigid cast iron column
Keeps the bit square and reduces vibration.
Feed handle and depth stop
Repeatable depth from hole to hole.
T-slot work table
Clamp the vice or workpiece securely.
Belt-driven speeds
Select the right speed for each material.
Questions
Questions about the Bench Drilling Machine
Choose by the largest hole you will drill in steel. Tell us the sizes and materials and we will recommend a model.
