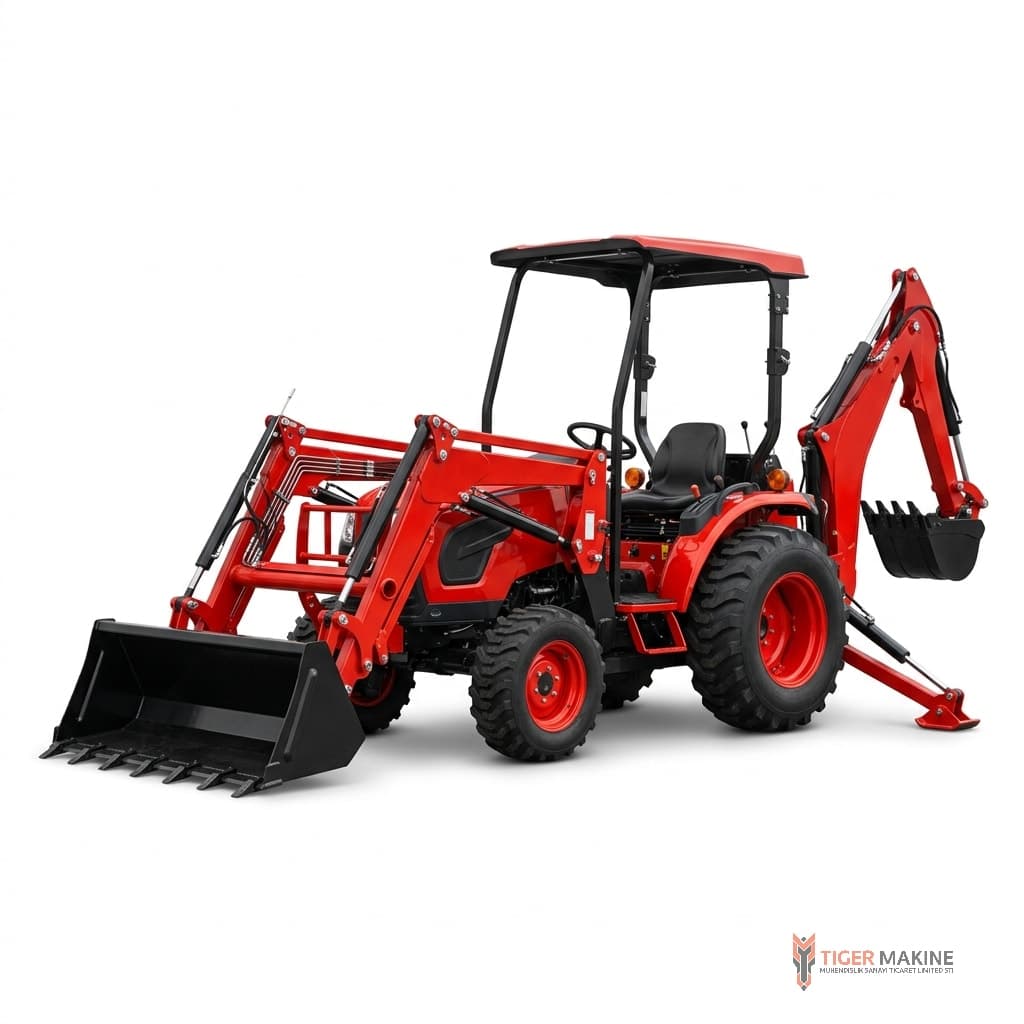

Backhoe Loader
A loader and a backhoe together, working at 2,250 PSI hydraulic pressure.
- Loader and backhoe
- 145° swing arc
- 2,250 PSI hydraulics
About this product
How the Backhoe Loader works

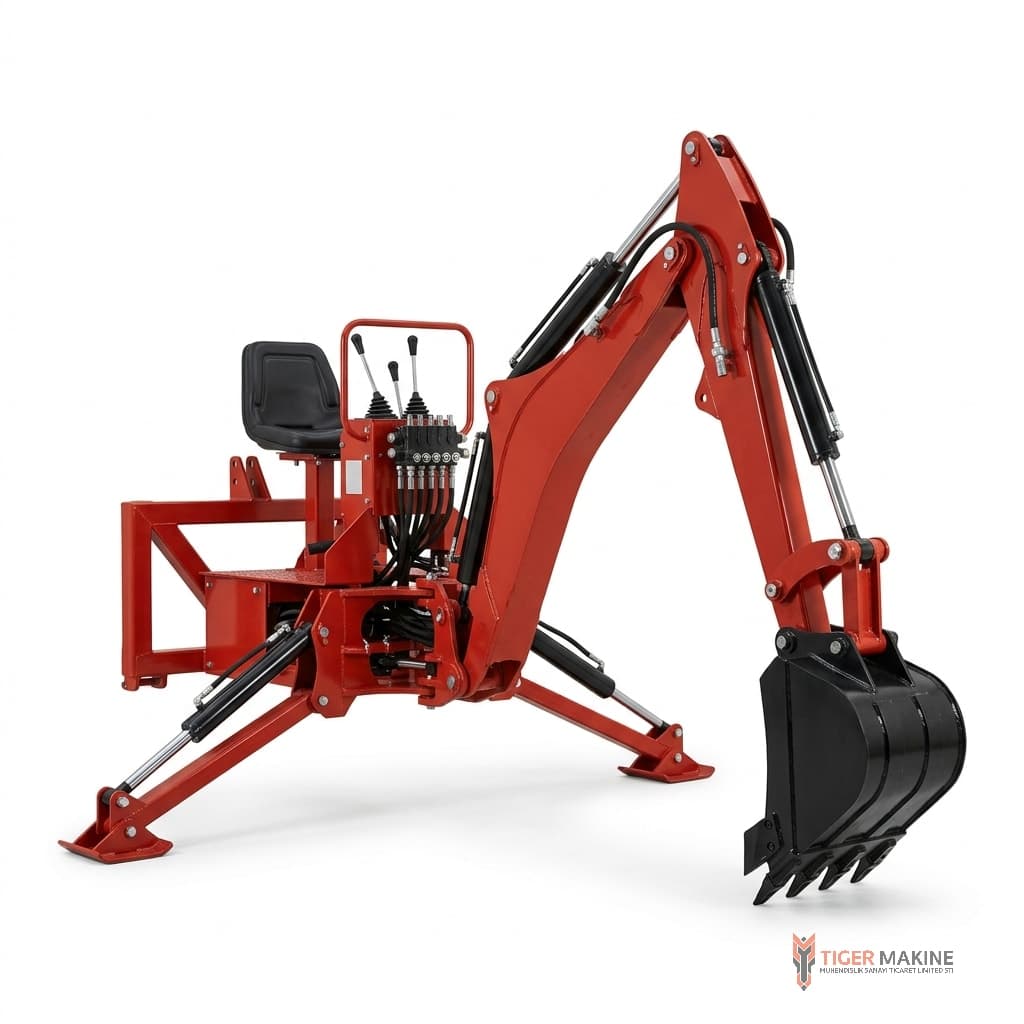

The backhoe loader attaches to a tractor and carries two tools that do very different jobs. The loader bucket at the front works like a big dustpan, scooping and scraping material from the surface. The backhoe at the back digs hard, dense ground, usually earth, and lifts heavy loads.
Hydraulic pressure is 2,250 PSI. The bucket measures 16 × 18 in with 165–170 degrees of rotation, the swing arc is 145 degrees, boom height from the ground ranges from 118 to 188 in, and the maximum digging depth is 92.6 to 146 in.
Put the stabilisers down before every dig and keep an eye on overhead lines and buried services. Digging depth is 92.6 to 146 in and boom height from the ground 118 to 188 in, so check these against your jobs. The hydraulic system works at 2,250 PSI.
Before you buy the Backhoe Loader
A backhoe loader is the machine for farms that dig trenches, lay pipes, clear drains and move earth. With a 16 by 18 inch bucket and 2,250 PSI hydraulics, it handles everyday digging. Think about the width of the trenches you dig and the room you have to work.
Specifications
Specifications
Backhoe Loader: the specifications
| Bucket Size | 16" x 18" |
|---|---|
| Swing Arc | 145 degrees |
| Hydraulic Pressure | 2250 PSI |
| Bucket Rotation | 165 – 170 degrees |
| Boom Height from Ground | 118" – 188" |
| Maximum Digging Depth | 92.6" – 146" |
Sizes available
Need another size of the Backhoe Loader?
Ask about sizesKey features
Key features of the Backhoe Loader
Loader and backhoe
Two machines on one tractor.
145° swing arc
Reaches to either side of the tractor.
2,250 PSI hydraulics
Strong force for hard ground.
Questions
Questions about the Backhoe Loader
A front loader lifts and moves material at the front of the tractor, while the backhoe digs at the back. A backhoe loader combines both, so one machine can dig a trench and load the spoil.
